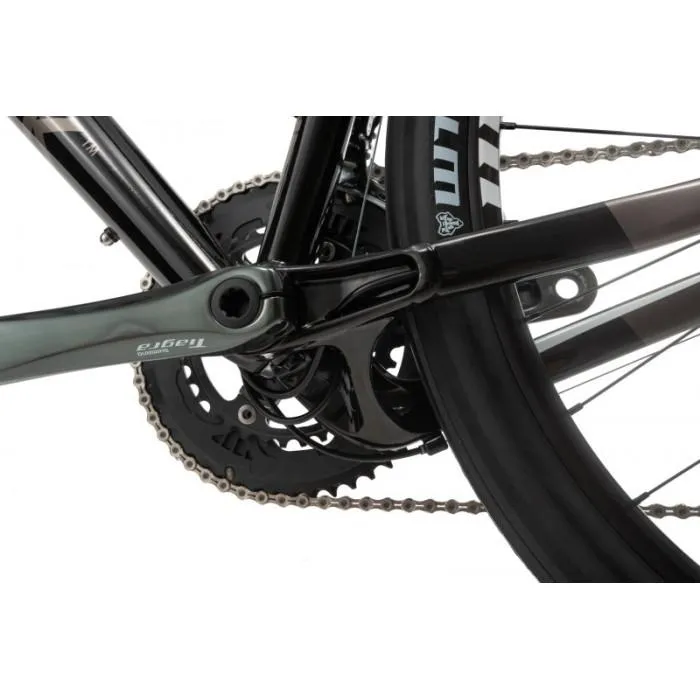

The Audax AL frame features some of our most high-tech manufacturing processes to date. These included a full hydroformed top and down tube, optimised butting profiles to reduce weight and increase compliance, and a cast bottom bracket junction for great tyre clearance while retaining short chainstays for snappy handling. Inspired by its steel brother, the Audax AL sports a full assortment of bottle mounts and braze-ons across the fork and frame. Shimano provides the Tiagra groupset, while our value-focused Bombtrack parts make up the finishing kit. WTB rims and tyres complete this high value, multi-purpose package.

Frame:	6061-T6 double butted alloy, tapered head tube, TA dropouts, replaceable hanger, PF86 shell
Fork:	full carbon, TA disc fork, 1.1/2'' - 1.1/8'' tapered steerer, with fender / cage mounts
Crankset:	SHIMANO TIAGRA FC-4700 alloy crank
Shifters:	SHIMANO TIAGRA ST-4700 STI 2 x 10
Headset:	FSA ORBIT C40 sealed integrated aheadset, 1.1/2'' - 1.1/8''
Wheelset:	WTB ST i19 double wall, TCS, 32h
Seatpost:	BOMBTRACK BEECH alloy seatpost, 27.2 mm x 300 mm

Stem:	BOMBTRACK ROAM forged alloy stem, -7°
Handlebars:	BOMBTRACK CX-10 drop bar, 31.8 mm, 10° flare
Saddle:	BOMBTRACK COMP saddle
Cassette:	SHIMANO TIAGRA CS-HG500-10 10-speed cassette, 11 - 32 T
Brakes:	TRP Spyre C flat-mount disc brakes, 160 mm rotors
Tires:	WTB HORIZON tire, 650B x 47C
Bottom Bracket:	SHIMANO BB86
Weight:	Approx. 10.3 kg (size M)

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at . So that we can help you in a timely manner, make sure to include the following:

• 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
• 2. Brief description of the claim
• 3. Photographs
• 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• • Any part of a product that has been installed, altered, repaired, or misused
• • Damage from unintended style of riding, abuse, neglect, accident, and racing
• • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
• • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
